• 4-Wheel Disc Brakes W/Abs
• Alternator 240 Amp
• Class Iv Trailer Hitch W/ Smart Trlr Tow Connector
• Dark Car
• Elect 4X4 W/4Auto Mode
• Manual Fold Mirrors
• Police Braking System
• Rear View Camera
• Reverse Sensing System
• Rear Power Lug - 80Amp
• Sync4 W/Evr & 12" Screen

• A/C Climate Control
• 40/Blank/40W/Reduced Bolster
• Black Vinyl Floor Covering
• Certified Speedometer
• Man Tilt/Telescop/Man Lock
• Police Heavy-Duty Cloth
• Power Driv Seat - 8-Way
• Power Locks And Windows
• Red/White Task Lighting
• Seatback Intrusion Plates
• Steering-Black Urethan

• Advancetracwith Rsc
• Airbags - Front Seat Mounted Side Impact
• Airbags - Safety Canopy Side Curtain
• Police Perimeter Alert
• Simple Fleet Key (4)
• Securilock Anti-Theft Sys
• Sos Post Crash Alert Sys
• Tire Pressure Monitor Sys

ENGINE: 3.5L V6 ECOBOOST

• 120-MPH top speed (STD)

• Mileage
• Fuel Economy Est-Combined (MPG): 19 (2025)
• EPA Fuel Economy Est - City (MPG): 17 (2025)
• EPA Fuel Economy Est - Hwy (MPG): 23 (2025)
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 800
• Cold Cranking Amps @ 0° F (2nd): 800
• Maximum Alternator Capacity (amps): 240
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3525
• Gross Axle Wt Rating - Rear (lbs): 3800
• Gross Vehicle Weight Rating Cap (lbs): 7050
• Gross Combined Wt Rating (lbs): 16800
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1040
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 8800
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2200
• Maximum Trailering Capacity (lbs): 10400
• Suspension
• Suspension Type - Front: Double Wishbone
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 3525
• Spring Capacity - Rear (lbs): 3800
• Axle Type - Front: Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 4050
• Axle Capacity - Rear (lbs): 3800
• Axle Ratio (:1) - Front: 3.31
• Axle Ratio (:1) - Rear: 3.31
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.8
• Rear Brake Rotor Diam x Thickness (in): 13.8
• Tires
• Front Tire Size: LT265/70SR18
• Rear Tire Size: LT265/70SR18
• Spare Tire Size: Full-Size
• Front Tire Capacity (lbs): 3800
• Rear Tire Capacity (lbs): 3800
• Wheels
• Front Wheel Size (in): 18 X 7.5
• Rear Wheel Size (in): 18 X 7.5
• Spare Wheel Size (in): Full-Size
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Rack-Pinion
• Turning Diameter - Curb to Curb (ft): 47.8
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Exterior Dimensions
• Wheelbase (in): 145
• Length, Overall (in): 231.7
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 77.2
• Overhang, Front (in): 37.6
• Ground to Top of Load Floor (in): 34.9
• Ground Clearance, Front (in): 9.4
• Ground Clearance, Rear (in): 9.4
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 66
• Cargo Box Width @ Top, Rear (in): 65.2
• Cargo Box Width @ Floor (in): 65.2
• Cargo Box Width @ Wheelhousings (in): 50.6
• Cargo Box (Area) Height (in): 21.4
• Tailgate Width (in): 60.3
• Cargo Volume (ft³): 52.8
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 40.8
• Front Leg Room (in): 43.9
• Front Shoulder Room (in): 66.7
• Front Hip Room (in): 62.5
• Second Head Room (in): 40.4
• Second Leg Room (in): 43.6
• Second Shoulder Room (in): 66
• Second Hip Room (in): 62.6
• Summary

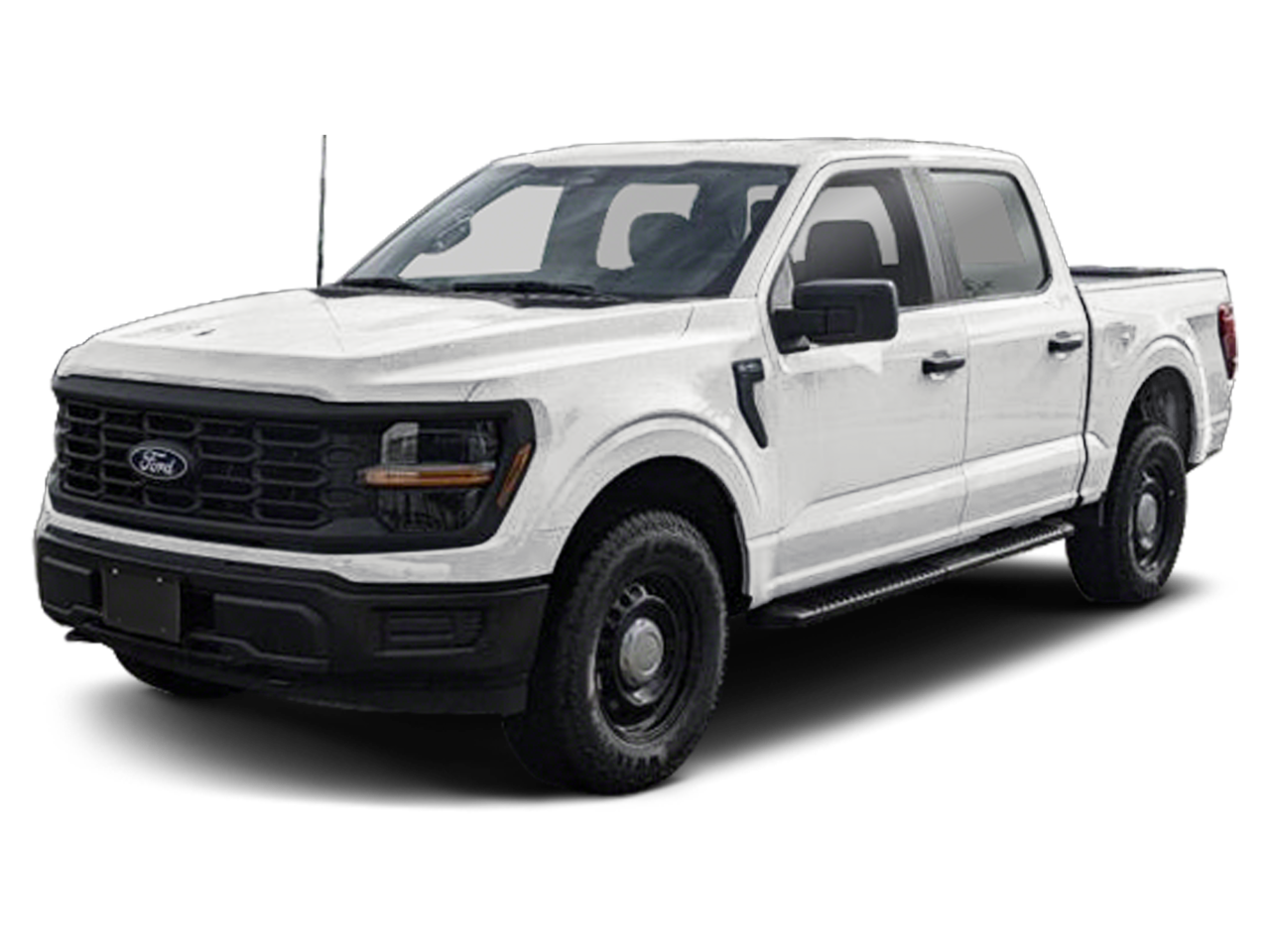

• Vehicle Name: Ford F-150 Police Responder
• Body Style: Crew Cab
• Body Code: T
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.3 (2025)
